Standard Bathtub Sizes: A Dimension Chart for Alcove, Freestanding, Soaking and Small Tubs

A bathtub can fill an entire wall and still leave too little room to approach the vanity. For an alcove, a familiar standard bathtub size is 60 inches long and about 30 to 32 inches wide. Treat those numbers as a starting point, not a replacement specification. Freestanding and compact models need their own drawings, and exterior height does not tell you the water depth. Use the five-model chart below to compare the shell, manufacturer-listed interior dimensions and separate depth figures, then check the selected tub's drain, support, filler and access requirements before choosing a size.

The AURA Blueprint

Choose the installation type first, then compare the actual shell and basin. Use the chart to choose a category to explore; keep the final fit decision tied to the exact tub and room.

• Read the drawing: Nominal and exterior dimensions may differ, even within the same size category.
• Compare the basin: Interior measurements, bottom-well geometry and Drain To Overflow answer different questions.
• Protect access: Check installation, plumbing and clearance requirements before fixing the tub's position.
• Keep proportion: A high rim or crowded approach can make a compact tub feel unexpectedly dominant.

What a standard bathtub size actually means

That familiar footprint describes an alcove starting point, not a size standard for every bath. If you are replacing an existing tub, establish the installation type and opening before comparing advertised lengths. A standard tub size on a product label does not establish its width, rim height, drain side or interior shape.

A nominal size helps you narrow the field. An exterior dimension tells you how much physical space the shell occupies. A manufacturer drawing goes further by showing the drain location, interior measurements and other details needed to plan the installation.

Consider two tubs in AURA's documented sample. The Grayley drawing lists an exterior length of 60 inches. The Soho freestanding model sold as a 60-inch bathtub measures 59¾ inches. Both drawings state a dimensional tolerance of ±½ inch. That quarter-inch difference between the listed lengths is not an installation allowance. The actual unit and opening still need to be checked before construction.

It is easy to measure the old bath, find the same length online and assume the replacement has been chosen. A dimension chart is better used as a shortlist than as permission to start framing.

Bathtub sizes and dimensions: five examples from AURA Modern Home

The comparison below uses five distinct bathtub bodies available through AURA Modern Home, with measurements taken from the corresponding Wyndham Collection dimensional drawings. The selection covers alcove, compact freestanding and longer soaking configurations. It is a practical comparison, not a claim about every bathtub on the market.

Each product name links directly to its AURA product page. Exterior and interior measurements are given in inches; maximum-fill figures are given in US gallons. The manufacturer-listed interior dimensions describe the basin at the drawing's specified reference points. They should not be mistaken for the dimensions of the flat bottom bathing well.

The categories overlap. Grayley is both an alcove bathtub and a nominal 60-inch model. Dorrit is a compact freestanding tub with a soaking-oriented shape. The two Soho sizes and the Rebecca extend the freestanding comparison without treating different trim finishes or faucet bundles as additional bathtub bodies.

There is one small dimensional distinction worth recording. Dorrit's manufacturer drawing rounds the exterior width to 31 inches, while its AURA product listing displays 30.7 inches. The table consistently uses the dimensional drawing. Neither figure should substitute for checking the selected unit when a close fit matters.

The last three columns require careful interpretation. Depth at Drain and Drain To Overflow are separate manufacturer measurements. Maximum Fill is the capacity figure printed on each drawing, not a prediction of how much water every bath will consume. None of the five drawings separately labels a tested usable water depth or personal immersion level.

The chart is most useful for narrowing the choice. For actual installation, the current drawing for the selected configuration and the installer's site measurements take precedence.

Alcove tub dimensions and the 60-inch bathtub

An alcove bathtub occupies a defined position against three walls, which makes its footprint comparatively straightforward to visualize. The complications often lie where the eye cannot see them: the finished opening, drain orientation, supporting base and connections.

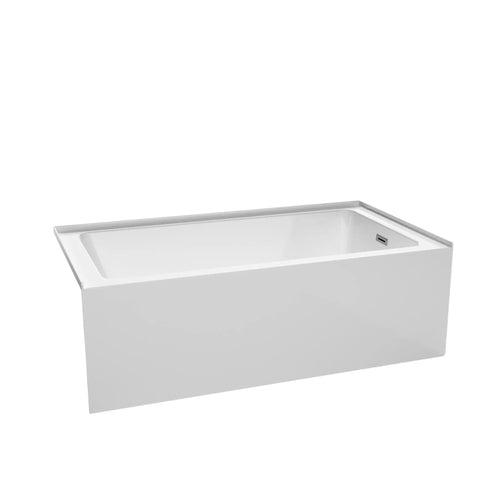

The sampled Grayley measures 60 × 32 × 18 inches and has a right-hand drain. Its drawing applies specifically to the 18-inch-high version. Other Grayley heights and configurations exist, but their specifications should not be borrowed to describe this model.

The Soho 60 has a slightly shorter and narrower exterior footprint, 59¾ × 29¼ inches, but stands 23 inches high. It would be a mistake to assume that the smaller footprint makes it a straightforward alcove replacement. Soho is a freestanding installation. Grayley is intended for a three-wall recess with an integrated apron and tile flange. The surrounding construction is fundamentally different.

When replacing an alcove bath, measure the wall opening and record whether you are measuring exposed framing or finished surfaces. Tile, backer board and other finishes can conceal the true stud-to-stud dimension. Also establish whether the drain is on the left or right when looking at the installed bath from the accessible side. A matching nominal length does not compensate for a drain on the wrong end.

The Wyndham alcove installation guide requires professional installation by a licensed plumber, measurement of the actual tub before construction, a level subfloor and access to plumbing connections. It also calls for the floor to support the tub, its water and an occupant. The base or feet must provide support, with mortar beneath the base area as directed. The rim must not carry the bathtub's structural load.

These details deserve attention before the surrounding tile is chosen. An alcove bath can have a beautifully quiet edge where tile meets the rim, but that simplicity depends on the concealed conditions being correct.

Once the opening, drain side and shell height are established, compare the available alcove configurations rather than shopping by length alone.

Freestanding tub dimensions: what changes from 55 to 72 inches?

A freestanding tub exposes its entire silhouette. The curve of the shell, the shadow beneath it and the open floor at either end become part of the composition. Its advertised length is only one factor in that effect.

The sample includes the compact 55-inch Dorrit, the nominal 60-inch and 72-inch Soho bodies, and the 70-inch Rebecca. Together they show how width and rim height change alongside length. A shorter freestanding bath can have a relatively tall rim, while a longer one can demand significantly more room near doors, cabinetry and the bathing approach.

Comparing the 60-inch and 72-inch Soho

The manufacturer-drawn Soho 60 is 59¾ inches long and 29¼ inches wide. The Soho 72 is 71½ inches long and 31¼ inches wide. The larger model therefore adds 11¾ inches of exterior length and two inches of width, based on the published drawings.

That additional length can be valuable, but it has to come from somewhere. In a generous bathroom, it may improve the balance beneath a wide window. In a narrow room, nearly a foot of additional shell can consume floor space that belongs to the route between the doorway and vanity.

There is a meaningful difference inside the tubs as well. The Soho 60 drawing lists interior dimensions of 53½ × 23¼ inches, while the lower bathing well is approximately 38 × 17 inches. The Soho 72 lists 65½ × 25¼ inches internally, with a lower well of approximately 49 × 18 inches.

Comparing the bottom-well figures gives a clearer picture of what the larger shell adds at the base. Even so, these measurements do not establish how a particular person will recline or where their knees and shoulders will rest. The slope of the back and the shape above the bottom well still matter.

Before choosing the longer model, mark both exterior footprints on the floor with painter's tape. Include the door swing, the standing position at the vanity and the intended faucet location. Stand in the bathroom as you normally would. The difference becomes more meaningful when you can see what happens to the surrounding floor.

Choosing the right visual weight

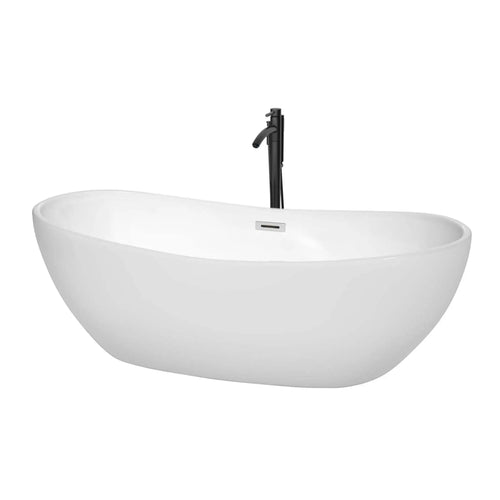

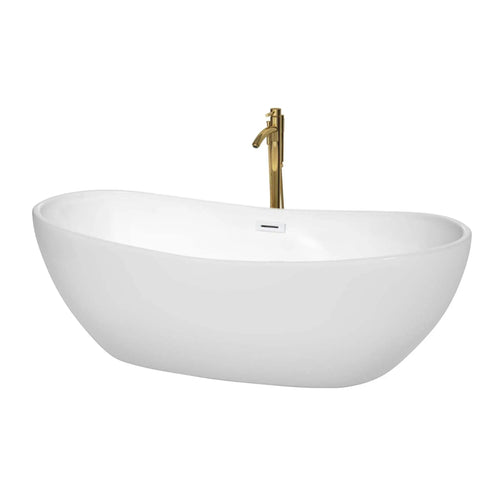

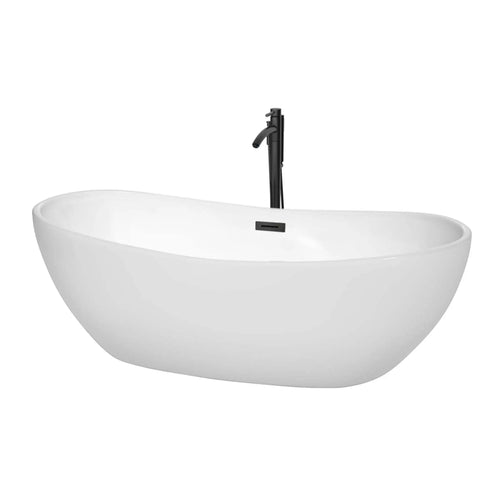

The Rebecca measures 70 × 32 inches externally. It is shorter than the Soho 72 but wider, so its proportions feel different even though both belong to the longer freestanding category. One can read as slender against a window wall; the other may create a fuller, more substantial silhouette against the same tile.

Dorrit offers another contrast. At 55 inches long and 26 inches high, it is shorter than either Soho but carries a taller rim. The compact footprint does not necessarily make it the visually lightest choice.

This is a judgment worth making from the doorway, not solely from an overhead plan. The tub should have enough working space to satisfy its installation and maintenance needs, while the floor around it still feels intentional.

If the larger footprint works in your room, explore AURA's longer freestanding configurations and compare their individual widths, heights and basin drawings before settling on a shape.

Soaking tub dimensions: height is not water depth

One of the easiest mistakes in bathtub shopping is to treat overall height as the amount of water available for soaking. The measurements describe different parts of the product.

Dorrit provides a useful example. Its exterior height is 26 inches, its listed interior height is 17½ inches, and its Drain To Overflow measurement is 14½ inches. The taller shell creates a more enclosed silhouette, but a 26-inch rim does not mean the bathtub holds 26 inches of bathing water.

For a deep soak, the overflow position and basin geometry deserve closer attention than the outside height alone. The shape of the back also affects how a bather sits in the water. A tub with a generous exterior height can still feel short inside if its ends slope strongly inward.

What the depth measurements actually describe

Manufacturer specifications often present several vertical measurements together. They are not interchangeable.

• Exterior height measures the overall shell height from the drawing's reference floor datum. It affects step-over, sightlines and how prominent the rim appears in the room.
• Depth at Drain describes an interior dimension taken at the drain position. It should not be treated as the operating water level.
• Drain To Overflow is a separate field identifying a dimension between the drain and overflow in the manufacturer's drawing. Its exact measurement endpoints should be confirmed before treating it as usable soaking depth.
• Maximum Fill is a manufacturer-listed capacity figure. It is useful context for planning, but it does not predict each household's water use or the amount of hot water required for a comfortable bath.

Across these five sampled models, Drain To Overflow values range from 12½ to 14½ inches, while exterior heights range from 18 to 26 inches. Those are the values for this specific group, not general industry ranges. The difference between them is precisely why comparing rim heights can be misleading.

If usable water depth is a priority, ask for a defined measurement from the manufacturer. Do not substitute the shell height or assume that the published Depth at Drain figure is the depth at which the overflow operates.

AURA's soaking tub collection is a useful next step when a taller, more enclosed bathing profile is the goal. Compare the selected product's basin and overflow measurements rather than assuming that every tub described as a soaker provides the same immersion.

Manufacturer-listed interior dimensions versus the bathing well

Length deserves the same scrutiny as depth. A manufacturer may publish an interior length across the upper basin while the flatter area at the bottom is considerably shorter.

Both Soho drawings make that difference visible. The nominal 60-inch model has a listed interior length of 53½ inches, but its bottom well measures 38 inches long. The nominal 72-inch model has a 65½-inch interior length and a 49-inch bottom well. The Rebecca drawing makes a similar distinction, showing a 68-inch interior length and a 53-inch bottom well.

These are not contradictory dimensions. They refer to different parts of a basin whose sides slope inward.

For a taller bather, a longer bottom well may be especially worth examining. For someone who prefers a more upright soak, the backrest angle and position may matter more. Neither drawing alone can prove which model feels comfortable, so a showroom inspection or a carefully reviewed basin profile is valuable when personal fit is a deciding factor.

Small bathrooms: a shorter tub is not automatically a smaller decision

Dorrit's 55-inch length may be appealing in a compact bathroom. It is 4¾ inches shorter than the manufacturer-listed exterior length of the Soho 60, while its approximately 31-inch width and 26-inch height still give it a substantial physical presence.

Imagine a bathroom where the entry door opens toward the vanity. A shorter shell only helps if the door arc and the standing position beside the tub still work. Mark those movements alongside the taped footprint. Open the vanity drawers. Check the position where someone would enter and leave the bath.

A high rim can also change the apparent proportions of the room. Set a 26-inch reference mark against the wall, especially if the bath sits beneath a low window. In a small space, height can be as visually consequential as length.

It is also worth comparing installation types rather than assuming that a smaller freestanding tub must be the better solution. In some compact layouts, a 60-inch alcove bath uses an existing recess more efficiently than a 55-inch freestanding model that needs accessible floor space around its shell.

The vanity belongs in the same calculation. A cabinet that fits its wall may still block movement once the bathtub is installed. AURA's bathroom vanity size chart provides additional guidance on cabinet depth, door and drawer movement, and surrounding floor space.

For smaller bathrooms, AURA's small bathtub collection brings together compact options. Judge each candidate by the room it allows you to retain, particularly the approach to the bath, access to controls and useful floor beside the vanity.

Before ordering, measure the delivery route too. Hallways, stair turns, doorframes and tight corners may be more restrictive than the intended installation area. A tub that looks perfectly sized on a floor plan is of little use if it cannot be brought into the room safely. Review the actual handling dimensions with the delivery and installation teams.

Bathtub clearance: separating requirements from recommendations

Clearance advice often compresses three separate subjects into a single number. Manufacturer instructions describe a particular product and installation. Building, plumbing and accessibility requirements depend on the project. Designers may recommend additional space for movement, cleaning and proportion.

Those distinctions matter because there is no single universal wall-gap number that can be applied to every freestanding bathtub.

The reviewed Wyndham freestanding installation guide does not prescribe one numerical distance between the shell and the surrounding walls. It does instruct the installer to place the actual tub in its intended position, trace its footprint and establish drain and waste locations from that unit.

The guide's leak-test procedure requires inspecting the waste connections beneath the floor after the bathtub has been filled to the overflow and drained. Access from below is specified for that test. This is an installation requirement, not a defined width for an ongoing maintenance corridor around every bathtub.

Where ADA bathtub provisions apply, Section 607.2 of the ADA Standards requires clearance in front of the bathtub extending along its length and measuring at least 30 inches wide. Additional conditions apply when a permanent seat is provided at the head end. These accessibility provisions should not be presented as a blanket requirement for every private residential bathroom.

For an ordinary residential layout, the designer and installer still need to check applicable local requirements. Beyond compliance, consider whether there is room to step into the tub, reach the controls, clean around its sides and move through the bathroom without navigating an obstacle.

A freestanding bathtub can look composed with relatively little exposed floor behind it, but leaving a gap that is too narrow to maintain creates an avoidable daily irritation. If the design depends on pushing the tub close to a wall, establish how the finished installation will be cleaned and serviced.

The faucet has its own geometry

A floor-mounted filler introduces a separate footprint, supply location and spout projection. Its position cannot be decided from the bathtub's exterior dimensions alone. When comparing freestanding tubs with faucets, keep the exact tub and accessory drawings together.

A useful AURA-listed example is the Soho 72-Inch Freestanding Bathtub with Brushed Nickel Faucet. Its listed floor-mounted filler has a nine-inch spout length. The corresponding manufacturer drawing identifies the horizontal outlet projection as a dimension of the faucet itself. It does not prescribe placing the filler nine inches from the bathtub.

The important relationship is between the outlet, the actual rim and the water-entry point inside the bathing well. A filler positioned too far away can direct water toward the rim or outside the tub. Too close, and the mounting hardware, controls or cleaning access may become awkward.

Have the installer coordinate the filler projection, base, anchoring and water-supply rough-in with the selected bathtub. Any applicable outlet-height or air-gap requirements must also be verified for the installation.

Before ordering, measure the room and the actual tub

By this point, the most attractive model may be clear. The remaining work is to establish whether the selected configuration can be installed properly.

Start with the manufacturer's current drawing and installation instructions, then check them against the room. A footprint is only part of the decision. The floor must support the filled bathtub and its occupant, the plumbing must connect correctly, and the project must have a workable installation and testing plan.

The maximum-fill figures in the comparison chart illustrate why capacity also deserves attention. The sampled Soho 60 lists 43½ gallons, while the Rebecca 70 lists 85 gallons. Those are manufacturer-listed maximum-fill values, not typical bathing volumes. They provide useful context when the installer evaluates floor loading and the household's available hot-water supply, but they cannot be used alone to size either.

A practical bathtub measurement checklist

1. Measure the intended position. Record the wall opening or available floor footprint, finished wall locations, door swings, window heights and adjacent fixtures. Distinguish framing measurements from finished dimensions.
2. Retrieve the current dimensional drawing for the exact bathtub and configuration you intend to purchase. Record exterior length, width, height and dimensional tolerance. Do not assume that every version of a named collection has the same shell height or drain arrangement.
3. Compare interior dimensions with the bottom bathing well where both are shown. Record Depth at Drain and Drain To Overflow separately. Note any measurement, including usable water depth, that has not been defined.
4. Verify the drain orientation and location, supporting floor and subfloor conditions, filler geometry, required plumbing access and delivery route. Check which accessories are included rather than relying on a photograph showing a faucet beside the tub.
5. Have the qualified installer confirm the actual bathtub, rough-in, applicable codes and final site conditions before construction is fixed in place. Complete the inspections and water testing required by the manufacturer's instructions.

One detail deserves particular attention: a tape outline locates the shell, not the waste connection. The Soho 72 manufacturer plan, for example, shows the drain center 9¾ inches from the illustrated long exterior edge. That measurement depends on the drawing's orientation. It is not permission to assume the drain sits at the center of the bathtub's exterior width.

The same caution applies to close-fitting alcove installations. Published dimensions can differ slightly from the actual manufactured unit within the stated tolerance. A finish change may leave the shell unchanged, but a different height, drain arrangement or bundled accessory can introduce specifications that need to be checked independently.

Keep the final product name, current specifications and installation instructions with the room measurements. Resolve missing or conflicting dimensions before ordering, while changes to the layout are still manageable.

What the bathtub leaves around it

Judge the remaining floor with the selected tub marked in place. The route between the doorway and sink remains part of the decision, even when a longer shell looks appealing.

Daylight usually reveals the full outline against tile and nearby cabinetry. In warmer evening lamp light, the underside shadow and the edge of the rim become more prominent. A tall white shell against darker stone can feel architectural and calm, provided its scale belongs to the room.

The best choice settles these questions together. The bathtub should offer the interior dimensions the bather needs, allow the plumbing and filler to work as specified, and leave enough room for daily movement. When those conditions align, the tub feels deliberately placed rather than fitted into whatever space remained.

Use the product links in the comparison chart to revisit the five AURA models, then confirm the exact configuration with its current drawing. The last inch of a plan is rarely the place to improvise.

Frequently Asked Questions

Is a 60-inch bathtub always exactly 60 inches long?

No. A 60-inch label can be nominal. The Grayley alcove drawing lists 60 inches externally, while the nominal 60-inch Soho freestanding drawing lists 59¾ inches. Both state a ±½-inch dimensional tolerance. Use the exact manufacturer's drawing and confirm the actual bathtub before construction.

How deep is a soaking bathtub compared with its exterior height?

Exterior height does not establish usable soaking depth. The sampled Dorrit bathtub stands 26 inches high, while its manufacturer drawing lists a 14½-inch Drain To Overflow measurement. The latter is a separate specification, not necessarily a tested immersion depth. Check how the manufacturer defines each measurement and consider the basin's slope and backrest geometry.

Can a 55-inch freestanding soaking tub fit a small bathroom?

It may, depending on the complete layout. The sampled Dorrit measures 55 × 31 × 26 inches according to its dimensional drawing. Check the door swing, bathing approach, drain position, faucet, cleaning access and delivery route alongside its length. In some small bathrooms, an alcove bathtub may use the available space more efficiently.

How much clearance should be left around a freestanding bathtub?

There is no universal wall-gap measurement for every freestanding bathtub. The reviewed Wyndham installation guide does not specify one. Confirm the selected manufacturer's instructions and applicable local requirements, then allow practical access for entering, cleaning and servicing the tub. Where ADA bathtub provisions apply, separate front-clearance requirements must also be satisfied.

Does a nine-inch faucet spout mean the filler must stand nine inches from the tub?

No. The nine-inch spout length listed for the identified Soho bathtub-and-faucet configuration describes the faucet's outlet projection. It is not a prescribed tub-to-filler clearance. The installer must coordinate the actual rim, water-entry point, mounting base and plumbing rough-in using the selected bathtub and faucet drawings.

What measurements are needed before replacing an existing bathtub?

Measure the intended opening or available floor footprint, noting whether dimensions are taken at framing or finished walls. Record the existing drain side and position, surrounding fixtures, door swings, plumbing access and delivery route. Compare those findings with the replacement tub's exact dimensional drawing. Have the qualified installer verify the rough-in, support conditions and installation requirements before construction begins.
